El Grande

The El Grande Panelized Barn kit gives you the most usable floor area, with a gambrel style roof, for your dollar. This plan was designed for easy conversion to a residence, home office, or recreation room, and features a full eight-foot high loft ceiling. The panelized loft walls, engineered trusses, and precut rafters ensure ease of construction, while dormers located along the eave line greatly increase the space utilization possibilities.

  • Total Liv.: 650 ft² (60 m²)
  • Front End URL: https://habitatspackagedhomes.com/floorplans/barns-garages/item/46-el-grande.html
  • Bedrooms: Loft
  • Bathrooms: N/A
  • Garage: 2 Car
  • Ceiling Height: 8’
  • Covered Porch: N/A
  • Home Plan Cost: Included (November 2018)
  • Building Kit Cost: $44,601 (November 2018)
  • Style: 2 Story
  • 1) Complete set of plans drawn to the California Building Code (CBC), as interpreted by Elk Grove, CA excluding Plot Plan and Energy Calculations. (Other States are available additional costs may apply)
  • 2) Plans are engineered for light-weight tile and no snow and/or maximum of 85 mph wind. Exposure "C" and/or Seismic Zone D. Greater design loads by quote only.
  • 3) 4 sets of plans, including 3 original engineered stamped sets and 1 copy.
  • 4) Truss Calculations.
  • 5) Plan changes due to California Fire Hazard Severity Zone add $180 to Base Plan Set price.
  • 6) Plan engineering costs may increase subject to local building ordinance.
  • 7) Home Plans are only sold as part of our building system.
What's Included Complete Price List
Free Plan Review Set
Download a Free Plan Review Set

After you complete the Free Plan Review set request form we'll send you an electronic version of a fully dimensioned floor plan and all 4 exterior elevations by e-mail. In addition to viewing it on your computer you are welcome to have a local print service print the pages out full sized (commonly 2' X 36') to help with the following:

Interior & Exterior Space Planning
Measure for furniture placement and even stake out the
building footprint for the ideal placement on your building site.

All Four Exterior Elevations
See what all four sides of the building looks like.

Building Cost Estimates
With our fully dimensioned plan you can get much of your interior finish
picked out and arrive at an anticipated budget for these items.

More Information

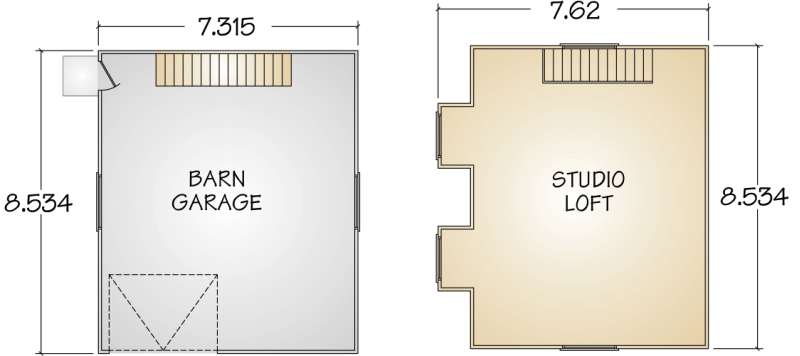

Download Hi-Resolution Floor Plan View Metric Floor Plan Construction Cost Estimate Modify This Plan
